Let’s now take a look at the shared server process in more detail. This type of connection mandates the use of Oracle Net even if the client and server are on the same machine— you cannot use a shared server without using the Oracle TNS listener. As described earlier, the client application will connect to the Oracle TNS listener and will be redirected or handed off to a dispatcher. The dispatcher acts as the conduit between the client application and the shared server process. Figure 5-2 is a diagram of the architecture of a shared server connection to the database.

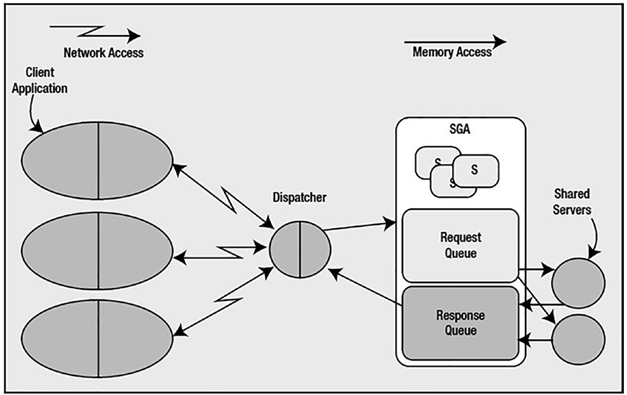

Figure 5-2. Typical shared server connection
Here, we can see that the client applications, with the Oracle libraries linked in, will be physically connected to a dispatcher process. We may have many dispatchers configured for any given instance, but it is not uncommon to have just one dispatcher for many hundreds—even thousands—of users.
The dispatcher is simply responsible for receiving inbound requests from the client applications and putting them into a request queue in the SGA. The first available shared server process from the pool of pre-created shared server processes will pick up the request from the queue and attach the UGA of the associated session (the boxes labeled “S” in Figure 5-2).
The shared server will process that request and place any output from it into the response queue. The dispatcher constantly monitors the response queue for results and transmits them back to the client application.
As far as the client is concerned, it can’t really tell if it is connected via a dedicated server or a shared connection—they appear to be the same. Only at the database level is the difference apparent.
Database Resident Connection Pooling (DRCP) is an optional method of connecting to the database and establishing a session. It is designed as a more efficient method of connection pooling for application interfaces that do not support efficient connection pooling natively—such as PHP, a general-purpose web scripting language.
DRCP is a mixture of dedicated server and shared server concepts. It inherits from a shared server the concept of server process pooling, only the processes being pooled will be dedicated servers, not shared servers; it inherits from the dedicated server the concept of—well—being dedicated.
In a shared server connection, the shared server process is shared among many sessions, and a single session will tend to use many shared servers. With DRCP, this is not true; the dedicated server process that is selected from the pool will become dedicated to the client process for the life of its session.
In a shared server, if I execute three statements against the database in my session, there is a good chance that the three statements will be executed by three different shared server processes. Using DRCP, those same three statements would be executed by the dedicated server assigned to me from the pool—that dedicated server would be mine until my session releases
it back to the pool. So DRCP has the pooling capabilities of a shared server and the performance characteristics of a dedicated server. We’ll explore the performance of a dedicated vs. a shared server more later in this chapter.
